BRASS SPRING NON RETURN VALVE

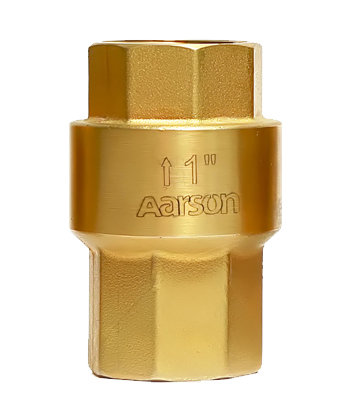

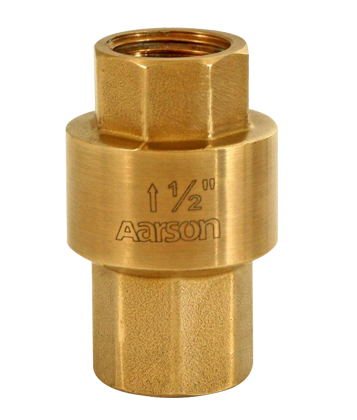

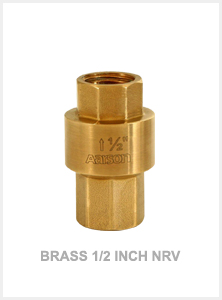

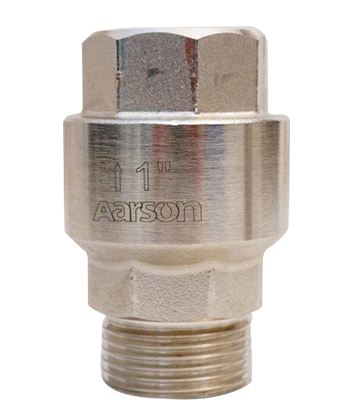

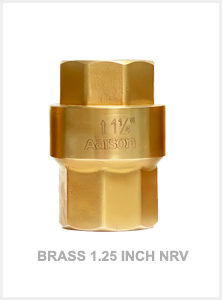

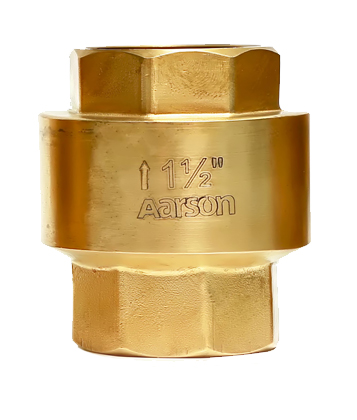

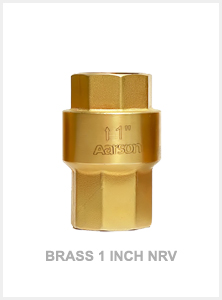

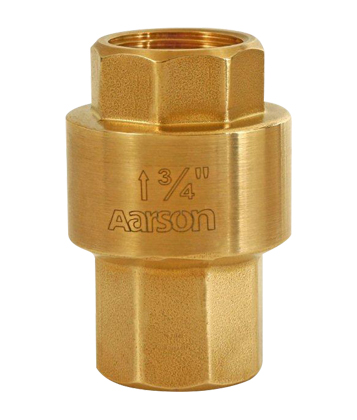

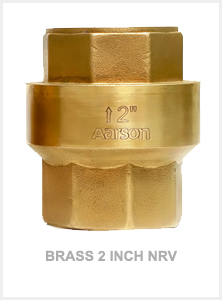

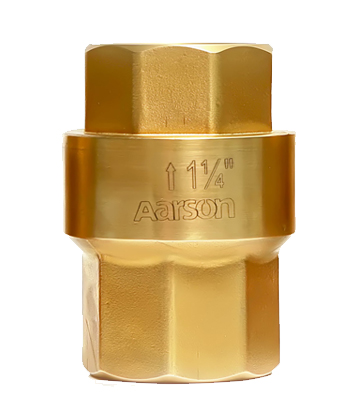

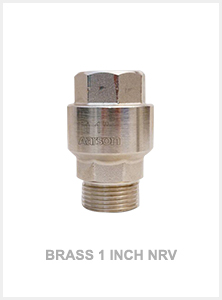

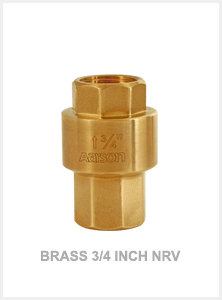

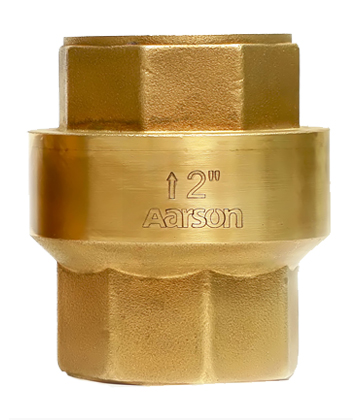

Brass 1/2 Inch NRV Brass 3/4 Inch NRV Brass 1 Inch NRV Brass 1 Inch NRV Brass 1 Inch NRV Brass 1.25 Inch NRV Brass 1.5 Inch NRV Brass 2 Inch NRV

Aarson has been one of the main suppliers of Non-Return Valve and Brass connectors since their inception in the year 1965. We are one of the leading Engineering agents for the manufacture of Connectors in Brass, Check Valve and Non Return Valve which are categorized as Plumbing Products. We provide Brass Spring Non Return Valve in different sizes to fit various sizes. We specialize in custom making these products in accordance to the requirements of our customers because we understand that every customer is unique and has a unique perspective.

Most of our products are made from high quality materials such as rod and castings and brass forgings. Along with providing custom made products we also provide standard products. We want our customers to associate us with any plumbing requirements, be it pressure pump or a trustworthy manufacturer in Brass NRV, or Brass Connectors. Over the years we have acquired goodwill around Ahmedabad, Coimbatore , Maharashtra , India as a whole and its many cities.

The Check Valve and Non Return Valve helps in the flow of liquid or gas in a single direction alone. These are fitted into pipes in areas where pressure conditions may vary and cause the fluid to flow in reverse direction therefore we at Aarson make these valves in the most intrinsic manner in order to provide the highest quality possible. We make our services seamless by providing one touch order fulfillment, solutions that are superior and personalized services, all of it at a competitive price and an in-depth knowledge of the industry.

Call us today for a plethora of Plumbing Product Services, your only trusted Brand!

Material Specification

Sr. No. Part Name Material Description Qty.
1 BODY BRASSCW617N UNI EN12165 1
2 END CONNECTION BRASS CW617N UNI EN12165 1
3 SPRING STAINLESS STEEL AISI 302 1
4 FLAT SEAT PU 1
5 OBSTRUCTER PC or BRASS 1

  • High Grade Materials to ensure best resistance in any Condition
  • Full Bore Check Valve
  • Connection –Threaded BSP, F x F and M x F
  • Both End Threaded, suitable for Horizontal and Vertical Fitting
  • Working Pressure: 20 BAR
  • 100% Hydrostatic Pressure Tested
  • Working Temperature:-20° C to +110°C

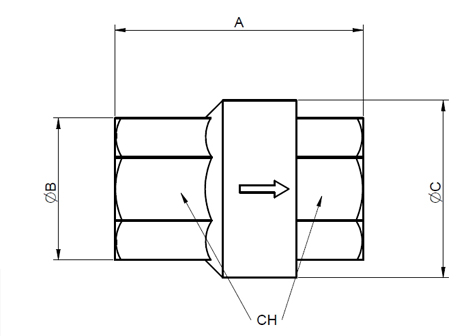

Dimensions

Product Code Size CH Ø B Ø C A
AI-050 1/2" 25 24.5 34.5 56.5
AI-075 3/4" 31 30.5 42 63.5
AI-100 1” 38 37.5 49 75
AI-125 1-1/4" 48 47.5 61 83
AI-150 1-1/2" 54 53.5 73 79.5
AI-200 2” 67 68 88 95.8
